Rapid roll doors for outdoor use

SPEEDROLLERS FOR OUTDOOR USE
SpeedRollers for outdoor use are designed to be mounted on the façade of a building. This can be done on the inside, but also on the outside of the façade.

Which door is most suitable for your situation depends on many factors. Firstly, the size and the wind pressure in the passageway.

SpeedRoller NovoZip CLASS 3

SELF-REPAIRING RAPID ROLL DOOR, ALSO FOR OUTDOORS

The self-repairing SpeedRoller NovoZip is the ideal solution for openings of up to 20.25 m2 and intensive use. The self-repairing operation of the self-lubricating track reduces interruptions and ensures minimum delay in the production process.

The NovoZip is intended as a fast, user-friendly room divider and provides very good draught exclusion and climate control.

This results in significant energy savings.

Advantages at a glance

Technische Daten

NovoZip

Max. surface area (W x H)

20.25 m2

Max. width (W)

4,500 mm

Max. height (H)

4,500 mm

Minimum wind load in Beaufort

11 Bft

Max. wind load class - EN 12424

3 *

Opening speed with frequency control

2.0 m/s

Closing speed with frequency control

0.5 m/s

Door curtain thickness

1.0 mm

Fabric weight Class M2

900 gr/m2

Fabric weight (option)

1,050 gr/m2

Suitable as an outside door

Yes



* Depending on configuration.





20.25 m2
Max. surface area
W x H = 4,500 x 4,500 mm

3 [min. 11 Bft]
Max. Wind load class
in accordance with EN 12424

2.0 m/s
Max. opening speed
with frequency control

APPLICATION
• SUPERMARKETS
• FOOD INDUSTRY
• LABORATORIES
• INDUSTRY
FEATURES

Guide rail with zip system and FlexEdge bottom bar



  • WIND RESISTANT
    up to at least 11 Bft. Class 3 according to EN12424
  • SELF-REPAIRING
    the door curtain automatically returns into the columns after a collision
  • SILENT
    the door curtain is manufactured in one piece and is therefore virtually noise-free
  • SAFE
    equipped with a safety light curtain and a soft FlexEdge bottom beam as standard
  • ROBUST
    steel guide columns guide the door curtain made of polyester-reinforced plastic fabric
  • DRAUGHT PROOF
    the zip fastener technology ensures a good draught proofing, as does the rubber sealing.
  • INSTALLATION
    in every passageway up to 20.25 m2 in the building and on the inside of the external facade

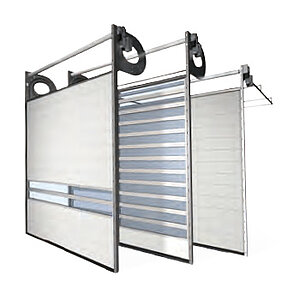

SpeedRoller SR-THERMO / FAST SPIRAL-DOOR

THE SUPER FAST, SPACE-SAVING SPIRAL DOOR

The NovoSpeed Thermo spiral door opens 6 times faster than comparable sectional doors and is therefore ideally suited for environments where many logistical movements take place daily. The fact that the door opens so quickly means a real energy saving - just like a SpeedRoller.

The patented track system is directly driven by an ingenious chain/steel cable system. Various finishes and controls contribute to the sleek design of the NovoSpeed Thermo.

Advantages at a glance

Properties

SR-Thermo

Max. surface area (W x H)

25 m2

Max. width (W)

5,000 mm

Max. height (H)

5,000 mm

Minimum wind load in Beaufort

11 Bft

Max. wind load class - EN 12424

3

Opening speed with frequency control

1.1 m/s

Closing speed with frequency control

0.5 m/s

Door curtain thickness Iso panels

40 mm

U-value with 5000 x 5000 mm ISO panels

1.77 W/m2K

NovoLux window sections available

Yes

Suitable as an outside door

Yes



25 m2
Max. surface area
W x H = 5,000 x 5,000 mm

3 [min. 11 Bft]
Max. Wind load class
in accordance with EN 12424

1.1 m/s
Max. opening speed
with frequency control

APPLICATION
• LOGISTICS
• AUTOMOTIVE
• MECHANICAL ENGINEERING
• METAL AND ELECTRICAL INDUSTRY
• CHEMICAL AND PHARMACEUTICAL INDUSTRY
FEATURES

Innovative, fast and space-saving



  • WIND RESISTANT
    up to at least 11 Bft. Class 3 according to EN12424
  • FAST
    the door leaf is driven directly with a patented chain/steel cable system, which ensures the unprecedented speed of the NovoSpeed Thermo
  • INNOVATIVE
    the new spiral system also has newly developed hinges and rollers
  • INSULATING
    with the 40 mm thick door panels, the Thermo has an excellent insulation value of 1.77 W/m²K
  • SHORT INSTALLATION TIME
    the rail / drive system is pre-assembled in the columns
  • LOW MAINTENANCE
    the drive system is without springs
  • EXTERIOR
    supplied as standard in RAL 9002 or RAL 9006, other colours on request






  • Also available with NovoLux window sections with insulated double glazing
  • In addition to the spiral rail system, you can also opt for the S600 rail system if you have the required space available

SpeedRoller STRONG Outdoor

THE HEAVY DUTY SOLUTION FOR DEMANDING SITUATIONS

The Strong Outdoor is the ultimate SpeedRoller for the really tough stuff: robust components and reliable technology ensure years of trouble-free use. The SpeedRoller Strong Outdoor has been developed especially for mounting on outer walls and in particularly large openings with high wind loads.

The stable columns with integrated seals keep all draughts out and your indoor climate comfortable. The electronic control can open this large door at 1.8 m/s*.

Wind load*
Up to 4,000 mm width Class 4
Above 4,000 mm width Class 3

Advantages at a glance

Properties

STRONG OUTDOOR

Max. surface area (W x H)

36 m2

Max. width (W)

6,000 mm

Max. height (H)

6,000 mm

Minimum wind load in Beaufort

12 Bft

Max. wind load class EN 12424

4 *

Opening speed with frequency control

1.8 m/s

Closing speed with frequency control

0.5 m/s

Door curtain thickness Iso panels

1.2 mm

Suitable as an outside door

Yes




36 m2
Max. surface area
W x H = 6,000 x 6,000 mm

4 * [min. .2 Bft]
Max. Wind load class
in accordance with EN 12424

1.8 m/s
Max. opening speed
with frequency control

APPLICATION
• INSTALLATION IN THE OUTSIDE WALL (INSIDE)
• DISTRIBUTION CENTRES
• WAREHOUSES
• LARGE INDUSTRIAL BUILDINGS
• HEAVY INDUSTRY
FEATURES

Sturdy and stable: the new EndLocks end pieces



  • WIND RESISTANT
    up to 12 Bft (up to 4,000 mm wide)
    Min. Class 3 according to EN12424 (> 4,000 mm wide)
    Min. Class 4 according to EN12424 (≤ 4,000 mm wide)
  • NOISE REDUCTION
    the door curtain is provided with additional sound insulation as standard
  • SAFE
    equipped with a safety light curtain as standard
  • ROBUST
    steel rails in the columns and new EndLocks at the hinges guide the door curtain
  • SHORT INSTALLATION TIME
    the new rail / tensioning system is completely pre-assembled in the columns
  • DRAUGHT-FREE
    the door leaf is sealed with sliding strips, the bottom beam has a rubber sealing profile.
  • INSTALLATION
    in every large passageway up to 36 m2 in the building and on the inside of the exterior facade

SpeedRoller NOVOFOLD

LONG SERVICE LIFE WITH VERY LOW MAINTENANCE

The NovoFold folding door has been developed for intensive use in outdoor openings up to 36 m2 in size. Ideal for the fast daily passage of forklift trucks and large goods.

The door curtain is equipped with a large number of reinforcement profiles and a unique folding technique, as a result of which it remains extremely stable even under high wind pressure.

The fully closed covers and the materials used make the NovoFold suitable for long-term use under all conditions.

Advantages at a glance

Properties

Novofold

Max. surface area (W x H)

36 m2

Max. width (W)

6,000 mm

Max. height (H)

6,000 mm

Minimum wind load in Beaufort

13 Bft

Max. wind load class - EN 12424

5 *

Opening speed with frequency control

1.1 m/s

Closing speed with frequency control

0.5 m/s

Opening / closing speed with standard control

0.9 m/s

Fabric weight Class M2

900 gr/m²

Suitable as an outside door

Yes




36 m2
Max. surface area
W x H = 6,000 x 6,000 mm

5 * [min. 12 Bft]
Max. Wind load class
in accordance with EN 12424

1.1 m/s
Max. opening speed
with frequency control

APPLICATION
• INSTALLATION IN THE EXTERNAL WALL (INSIDE AND OUTSIDE)
• DISTRIBUTION CENTRES
• WAREHOUSES
• LARGE INDUSTRIAL BUILDINGS
• HEAVY INDUSTRY
FEATURES

EasyReplace: easier maintenance and repair



  • WIND RESISTANT to min. 13 Bft
    Min. Class 3 according to EN12424 (standard)
    Min. Class 5 according to EN12424 (with reinforcement)
  • SOLID
    the guide columns and the drive are completely encased in watertight steel caps. This makes the NovoFold suitable for outside mounting.
  • EXTREME
    the unique folding construction and the materials used make the Novofold extremely reliable and robust, even under harsh conditions. The NovoFold is not affected by high wind pressure, rain, dust, etc.
  • SAFE
    fitted as standard with Opto-sensors in the lower beam: As soon as the lower beam touches something, the door opens immediately. The door opening is secured with safety photocells.
  • DRAUGHT SEAL
    the bottom beam has a soft rubber sealing profile, additional draught brushes are available as an option.
  • OUTSIDE
    powder-coated in RAL 7011 as standard.

Made to measure and controllers!
