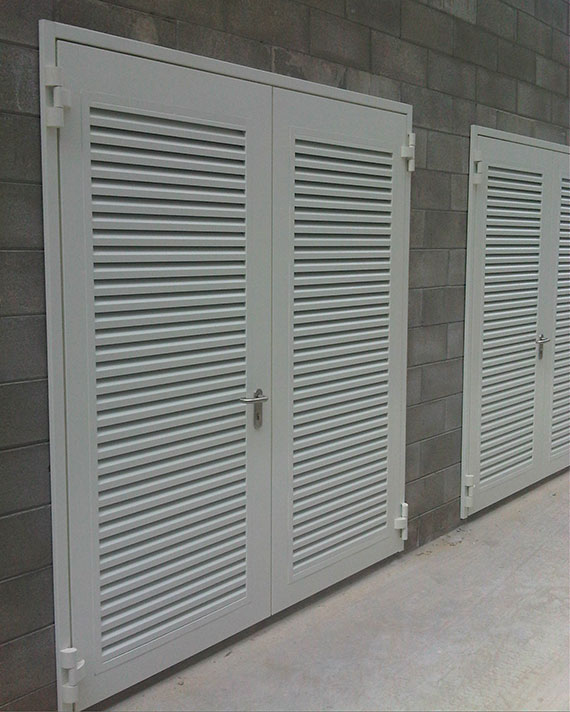

Elite+ Louvered

The door Elite + Louvered combines perfectly functionality and aesthetics. Louvered doors are widely used in construction: are used to ventilate the premises without Windows, such as basements or garages, thus preventing that accumulate moisture.
Several possible solutions: painted in Ral colours, stainless steel, fixing on plasterboard wall.

Technical Features:

Frame in galvanized steel Z shape mm. 15/10, without bottom profile, prepared for installation of cold smoke seal.
Leaf in galvanized steel mm. 8/10, total thickness mm. 64. High density package inside.
Standard equipment: two adjustable hinges, couple of black handles with plate, cylinder with three keys, lock on both leaves, arm closing selector, thermo.
expanding gasket on the perimeter.
Possible installation of bottom mobile threshold, panic devices, electromagnets and door closers.
Maximum size possible mm. 2670x2640h.

Many customizations and accessories

... With different materials

Standard

Galvanized steel 8/10

On request

Galvanised steel 10/10
Galvanised steel 12/10
Galvanised steel 15/10
Stainless steel

... With many colors

...2 Types of Wrap-around frame

Wrap-around frame, external mounted

Wrap-around frame, internal mounted

Supply according to customer's request.

Wrap-around frame made of galvanized steel with thickness:

8/10 for external mounted
10/10 for internal mounted

Painted in RAL

... 5 ﬁxing systems

Le porte Elite+ sono testate su supporto flessibile normalizzato, secondo la norma EN 1363-1, punto 7.2.2. In ottemperanza a quanto riportato al punto 13.5.3. della EN 1634-1 si ha quindi la possibilità di installare il prodotto su ogni costruzione flessibile non normalizzata, che abbia resistenza al fuoco almeno pari alla resistenza del serramento.

Fixing by dowels

Fixing on gypsum carton EI 60

Fixing on gypsum carton EI 120

Fissaggio su precassa metallica

Fixing on blockframe EI 60 EI 120

(*) It’s possible to reduce this size until mm. 55.
