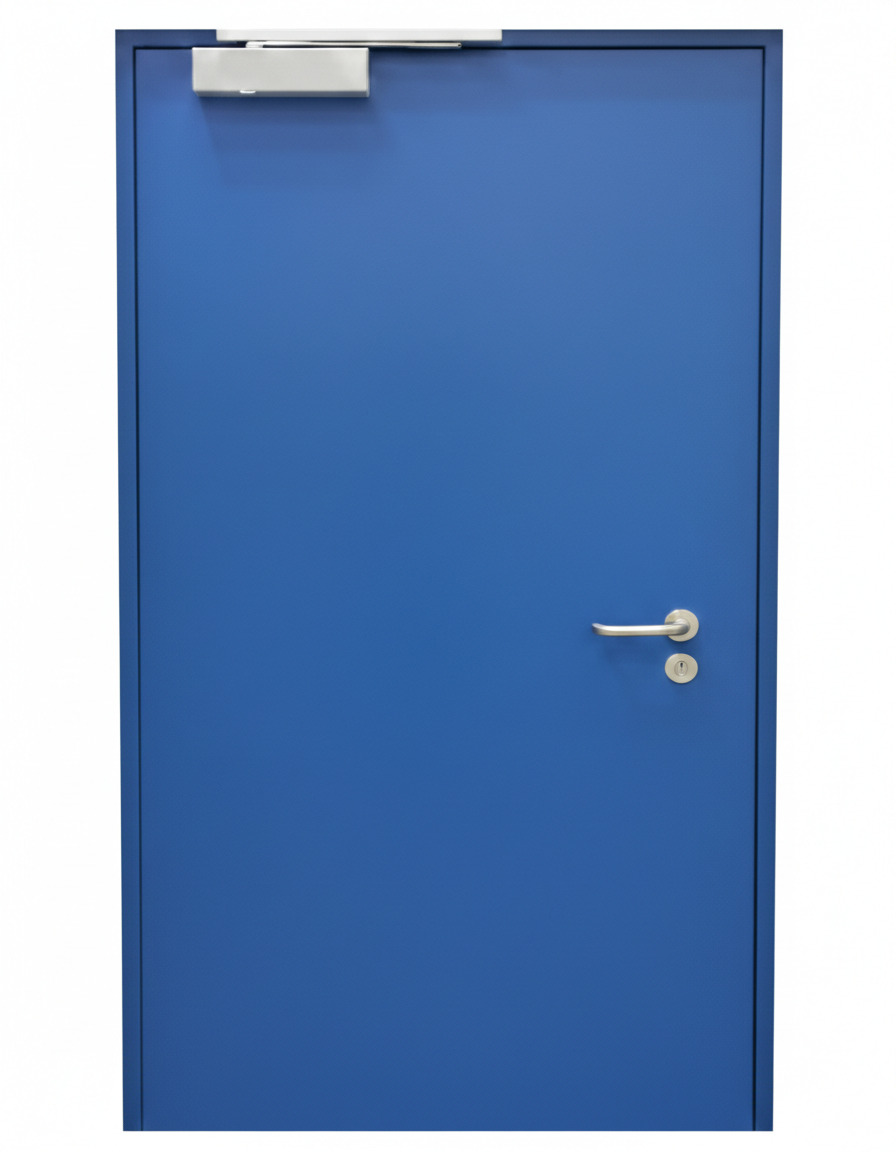

MODULA

Certified according to EN 1634, Modula incorporates the quality and reliability of our reference door, theElite+, offering an alternative solution designed for those seeking an essential design. It retains all the fundamental characteristics of the range while offering the same versatility in customisation: it is available in made-to-measure dimensions, can be painted in any RAL colour, and is also offered in stainless steel. It also shares the possibility of choosing between different anchoring systems, and offers a wide range of combinable accessories. At the same time, it is distinguished by certain features that make it more essential.

The main differences with the Elite+ door are:



  • Fire resistance of up to 60 minutes.
  • Fixing on plasterboard only.
  • Dedicated frame, designed for flush wall installation.
  • Coplanar leaf on both sides, for a surface completely aligned with the wall.
  • Concealed hinges, giving a more minimalist and elegant appearance.
  • Maximum opening angle of 90°, ideal in spaces that require space control.
  • Increased clearance, which improves accessibility.

Modula is an elegant design solution, ideal for those who want a fire door that is well integrated into the architecture, without sacrificing the performance and quality of our range.

It is also available in the Metal version, without fire resistance.

TECHNICAL CHARACTERISTICS:

  • Fire resistance class EI 60 minutes
  • 15/10 mm galvanised steel profile frame, 'L3' tubular profile without lower rebate
  • Heat-expanding gasket on frame perimeter
  • Sash in 8/10 mm galvanised double steel sheet, total thickness 64 mm. High-density internal insulating pack
  • Standard: overhead door closer, black PVC handle with steel core, cylinder with three keys, lock on both leaves
  • Two concealed hinges per sash: pressed steel with adjustable ball-bearing slides
  • Sealing rods placed between the two hinges
  • Possible application of lower baffle sill and panic devices
  • Surfaces protected with galvanisation and embossed surface finish with epoxy-polyester powder
  • Maximum feasible dimensions: 2680 x 2700 mm

STANDARD EQUIPMENT

POWDER PAINTING IN RAL COLOUR
Standard painting guarantees the same colour on sash and frame, both sides. A wide range of non-standard RAL colours for greater customisation, with the possibility of making the door in a two-colour version or supplying it unpainted.

LOCKENCOUNTER
Nickel-plated adjustable striker for the lock latch, protects the frame paintwork for superior longevity.

SECURITY ROOTS
Standard: 2 suitably shaped security rostrums for burglary protection.

SLIDING HINGES
Made of pressed steel with adjustable ball bearings.

CUSTOMISATIONS AND ACCESSORIES

MATERIALS

STANDARD

  • Galvanised sheet metal 8/10

UPON REQUEST

  • Galvanised sheet metal 10/10
  • Stainless steel



COLOURS

STANDARD COLOURS

Pearl white
RAL 1013

Pure white
RAL 9010

Gentian blue
RAL 5010

Traffic white
RAL 9016

Light grey
RAL 7035

Anthracite grey
RAL 7016

Greyish white
RAL 9002

Brilliant aluminium
RAL 9006

COLOURS WITH SURCHARGE

Beige
RAL 1001

Bluish grey
RAL 7031

Ruby red
RAL 3003

Greyish brown
RAL 8019

Sky blue
RAL 5015

Cream white
RAL 9001

Blue pastel
RAL 5024

Deep black
RAL 9005

Moss green
RAL 6005

RAL colours
at customer choice

Silver grey
RAL 7001

Discontinued RAL not available: RAL 1003, 1014, 1021, 2011, 6011, 6018, 6027, 6028, 6033

Do you need anything else?

The door can be produced in any RAL colour of your choice for an additional charge.

Our dealers are available to guide you in selecting the most suitable shade.

HANDLING

Novoguard panic bar

EPN-Bar panic bar

Novopush panic bar

Anti-grip handle

EPN-Touch panic bar

ArmO safety device

... DIFFERENT PERFORMANCES

Firebreak EI2 60/120
