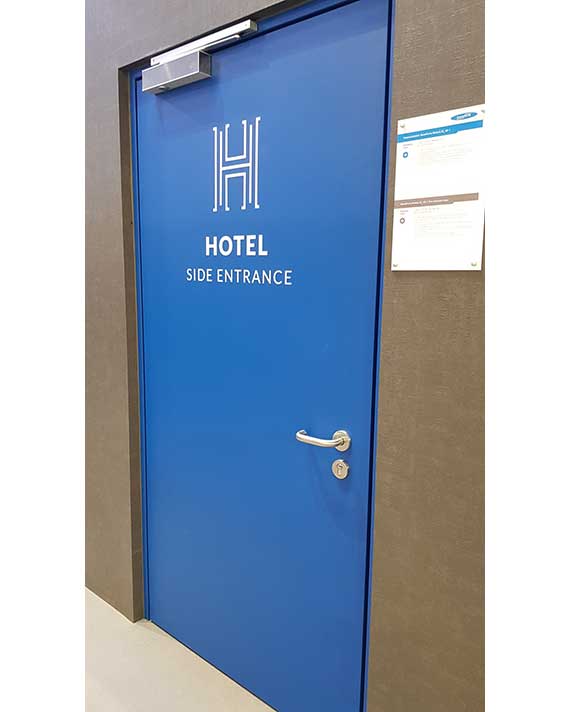

Certified according to EN 1634, the Modula fire door perfectly combines functionality and aesthetics. There are numerous possible solutions: painting in the RAL colors of your choice, construction in stainless steel, installation on plasterboard walls.
Fire resistance class EI 60 minutes
Frame in galvanized steel profile mm. 15/10, "L3" tubular profile without bottom stop.
Thermo-expanding gasket on the perimeter of the frame.
Door in double galvanized steel sheet mm. 8/10, total thickness mm. 64. High density insulating inner pack.
Standard: overhead door closer, black PVC handle with steel core, cylinder with three keys, lock on both doors
Two concealed hinges per door: in pressed steel with sliding on adjustable ball bearings
Sealing bolts placed between the two hinges.
Possible application of lower draft excluder, anti-panic devices.
Surfaces protected with galvanization and surface finish with epoxy polyester powder.
Maximum achievable dimensions mm. 2670x2700h.
Standard: 2 safety rostrums suitably shaped for burglar protection.
Adjustable nickel-plated striker for the lock latch, protects the painting of the frame for superior longevity.
POWDER PAINTING IN RAL COLOR
A wide choice of external finishes: in addition to the traditional powder coating in a Ral colour, it is possible to print and decorate the door as desired, thanks to the new Novoprint decorative coating.
Made of sinterized steel, sliding on adjustable double steel roller bearings.
