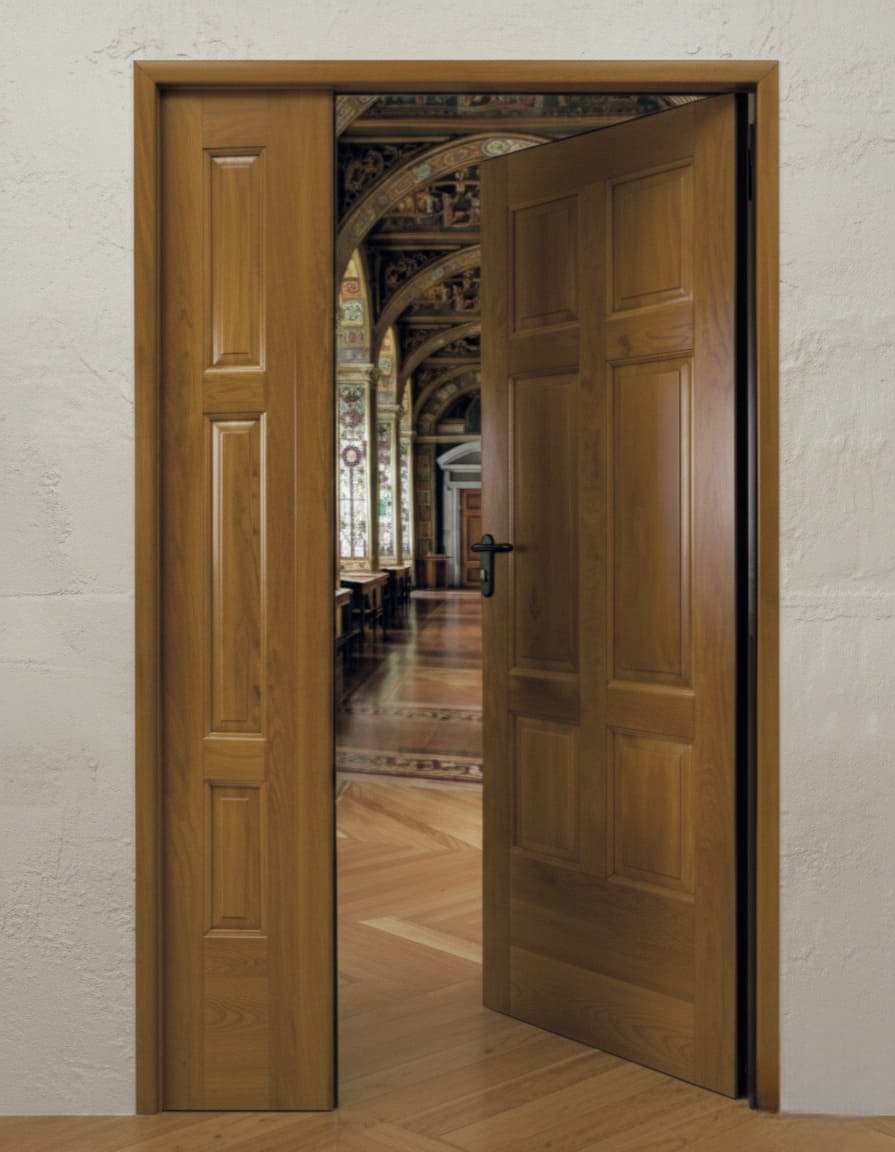

Shield

Certified in accordance with EN 1634, the Scudo fire door incorporates the structural features of the Elite+, but stands out for its special composite wood sash cladding, with the possibility of extending the cladding to the frame as well. This configuration makes it an ideal solution for all environments where you wish to maintain the warm aesthetics of wood, without sacrificing the levels of protection required by safety standards. The door can be made with pantographed processing or enriched with decorative inserts available in different woods and finishes, allowing the door to be adapted to both modern contexts and more classical or prestigious environments.

This door retains all the fundamental characteristics of the Elite+ range, guaranteeing robustness, reliability and freedom of customisation. The main difference concerns the fire resistance class, which for Scudo is only certified for 120 minutes.

The Scudo range is divided into three main types:

SCUDO LAM: Abet laminate cladding on 4 mm MDF support
SCUDO ECO: 7 mm MDF panel
SCUDO CLASS: 14 mm MDF panel

Scudo is a suitable choice for architectural projects that require a door that is functional, certified and at the same time can be harmoniously integrated into the overall design of the room.

It is also available in the Metal version, which has no fire resistance.

TECHNICAL CHARACTERISTICS:

Fire resistance class EI 120 minutes
Frame made of 15/10 mm galvanised steel Z-profile, without lower rebate, compartment for insertion of cold smoke seal
Door covered with wooden panel, treated with formaldehyde-free resins (bio-architecture)
MDF panel with plastic laminate coating or various wood finishes also possible

Standard: two bayonet hinges, pair of black handles with plate, cylinder with three keys, lock on both doors
Locking mechanism by means of spring in the hinges, adjustable
Insertion of windows of various sizes and accessories possible
Maximum possible dimensions: 2500 x 2700 mm

DIFFERENT PROCESSES

1: Door
2: Panel applied to sash

MATERIAL	FINISH	THICKNESS PANEL
WOOD / MDF	SMOOTH	7 / 14 mm
WOOD / MDF	SLAT	7 / 14 mm
WOOD / MDF	DRAWERS	14 mm
LAMINATE	SMOOTH	4 mm

NOTE: cladding can be on one or both sides of the door

FINISHES

WOOD CLADDING

SURFACES

Smooth
(coating thickness 7 mm)

Slats
(covering thickness 7 mm)

Drawers
(coating thickness 14 mm)

WOOD COLOURS

Essence: Oak
Colour: natural

Essence: Oak
Colour: bleached

Essence: Oak
Colour: smoked

Essence: Oak
Colour: titanium

Essence: Walnut
Colour: flamed

Essence: Walnut
Colour: striped

Essence: Tanganika
Colour: natural

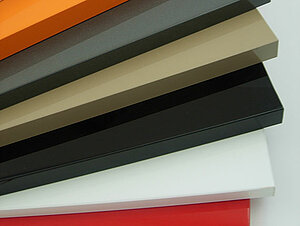

Essence: lacquered MDF
Colour: 9016

Do you need anything else?

The door can be produced in any RAL colour of your choice for an additional charge.

Our dealers will be happy to guide you in selecting the most suitable shade.

Note:
The images are for the sole purpose of representing the product and are purely indicative.

LAMINATES
